MiCo develops and mass-produces components that can be stably operated under ultra-high temperature conditions in a vacuum inert atmosphere by applying various surface treatment technologies to graphite and carbon composite material-based components.

These technologies extend the lifespan of customer components through oxidation-resistant control, and by applying various surface treatment techniques, they provide benefits such as preventing carburization, improving release and controlling process adverse reaction, thereby improving customer company processes and reducing operational costs.

htt tech top 이미지

SH-TRC Coating Property

Item TRC Coating
AI203 SH-1 SH-2 SH-3 SH-4 SH-5

Porosity (%)

3 ~ 5

2 ~ 3

3 ~ 5

3 ~ 5

2 ~ 4

2 ~ 3

Hardness (Hv)

700 ~ 750

550 ~ 600

650 ~ 700

600 ~ 650

650 ~ 700

600 ~ 650

Color

White

Dark gray

Brown

Ivory

White

Ivory

Vol. Resistance (Ω㎝)

E+ 9 ~ 10

E+ 9 ~ 10

E+ 11 ~ 12

E+ 10 ~ 11

E+ 9 ~ 10

E+ 13

Max operating temperature (°C)
-Single layer for carbon-

≤ 1550

≤ 1300

≤ 1250

≤ 1200

≤ 1000

≤ 1550

Represcntative characteristic

Universalty used

T-shock resist

Heat corrosion
& wear resistance

Thernal barrier

T-shock Resist
Heat Sinking

High density

좌우로 드래그 해보세요

Application

application 이미지

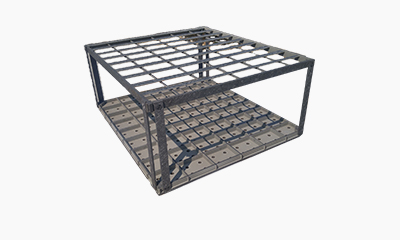

SH Coated CC Fixture

application 이미지

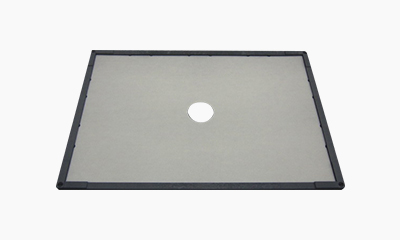

SH Coated Graphite Setter

application 이미지

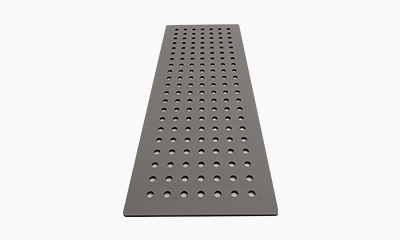

SH Coated CC Setter

application 이미지

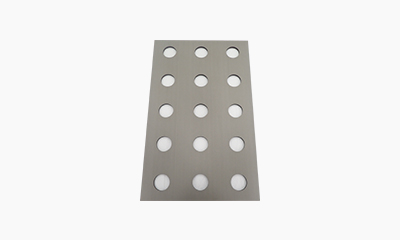

SH Coated CC Setter

application 이미지

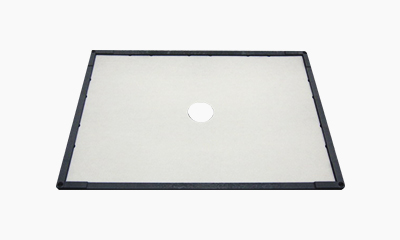

SH Coated CC Setter

application 이미지

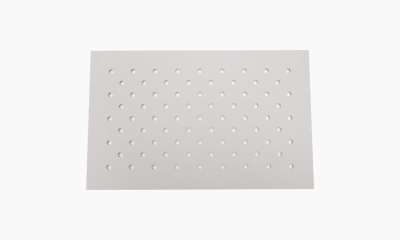

SH Coated CC Setter
